3M™ Double Coated Tape with a thick PVC film improved handling with ease of die cutting and laminating. The high tack adhesive

provides relatively high initial adhesion and good shear holding power to a variety of surfaces, at the same time it has good vibrating resistance ability.

Color：white

Specification: 1200mm*33m (Width to be slit as required)

Faceside 1 Adhesive Type/Thickness: Acrylate /0.0045"(0.114mm)

Backside 2 Adhesive Type/Thickness: Acrylate/0.0045"(0.114mm)

Liner Color, Type, Print White, 55# PCK, No print

Liner Caliper: 0.003"(0.076mm)

Carrier Type: Whit PVC 3 /0.004"(0.1mm)

Note 1: Faceside adhesive is on the interior of the roll, exposed when unwound.

Note 2: Backside adhesive is on the exterior of the roll, exposed when liner is removed.

Note 3: PVC (Poly vinyl chloride )

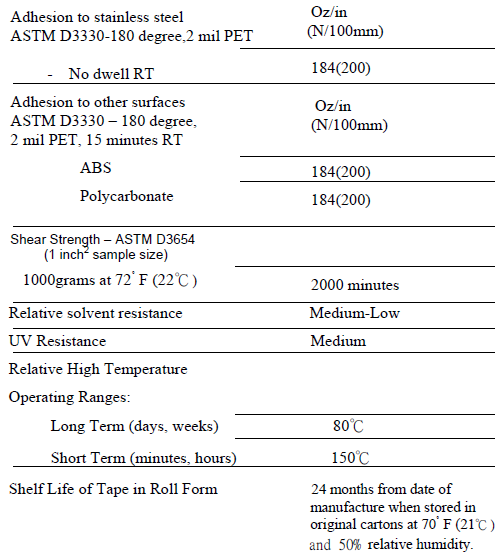

Typical Physical Properties and Performance Characteristics

Application Ideas

• Medical/non-medical diagnostic test strips

• Plastic film lamination/bonding

• Splicing

• Mirror attachment
